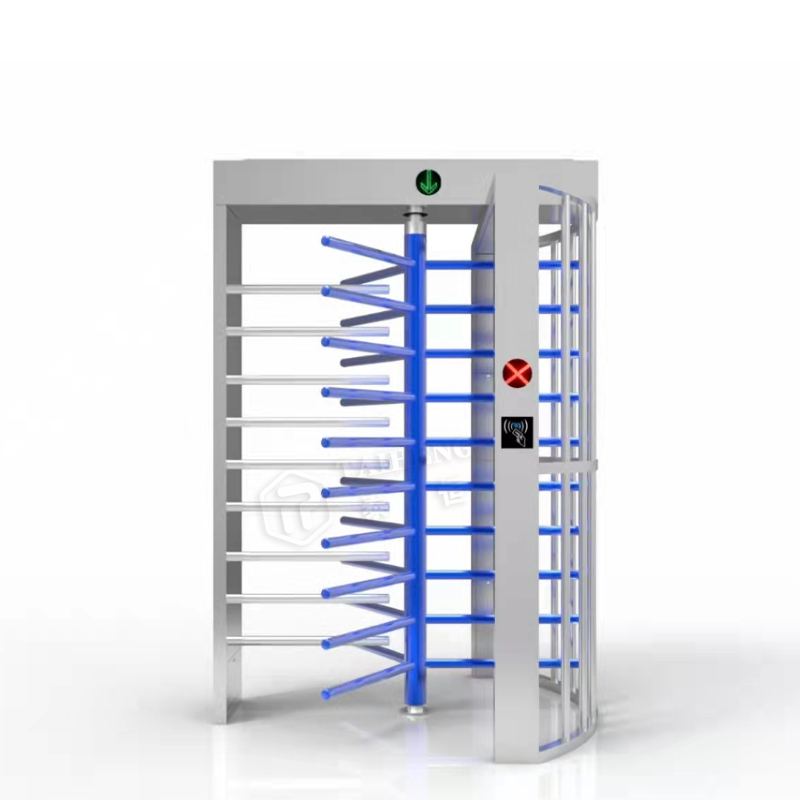

Full height turnstiles TH-Z32

Full height turnstiles TH-Z32

source AC 220V 50/60HZ
Product size 1500mm*1500mm*2300mm
working temperature -30℃~+55℃
Channel width 600mm
Rotary rod material stainless steel
Traffic speed 30-35 persons per minute
power 50W
control mode Relay signal input, dry contact signal, 485 signal
I/O input User interface, synchronization interface, infrared interface, swing position detection interface

Output: motor interface, indicator light interface, counter interface, power interface

service life >10 million times

Description

● Only authorized personnel can pass, and no unauthorized personnel can pass
● The traffic mode can be flexibly selected, which can be one-way or two-way
● The gate control board can detect the positive and negative rotation after card swiping, and the card swiping can only be positive rotation, and the reverse rotation is self-locking
● Anti-tail tracking control technology to strictly prevent unauthorized personnel from passing
● Anti-shock function, when the door opening signal is not received, the rotary lever will automatically lock
● LED traffic direction indication, showing traffic status
● Priority of fire emergency signal: in case of emergency signal or power failure, the brake lever will automatically unlock and can rotate freely
● It has the automatic reset function, that is, after obtaining the gate permission and giving the gate opening signal, it will not pass within the set time, and then it will be self-locking again
