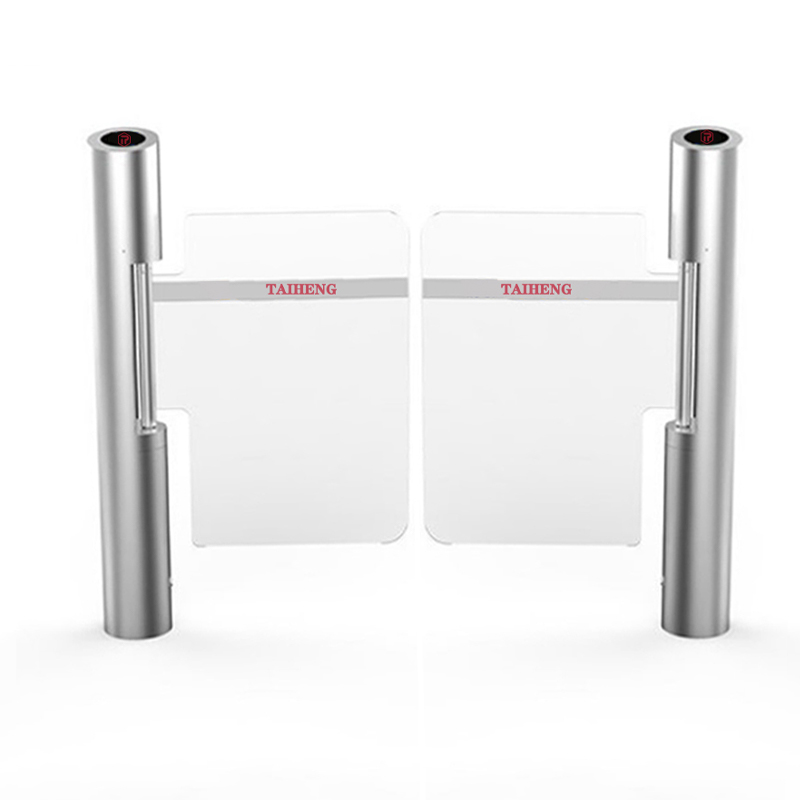

Turnstiles TH-B215

Turnstiles TH-B215

source AC 220V 50/60HZ
Product size 168mm*168mm*1050mm
working temperature -30℃~+55℃
Channel width 600mm~1100mm
Door wing material Acrylic glass
Traffic speed 30-35 persons per minute
power 110W
control mode Relay signal input, dry contact signal, 485 signal
I/O input User interface, synchronization interface, infrared interface, swing position detection interface

Output: motor interface, indicator light interface, counter interface, power interface

service life >10 million times
Category:

Description

Functional characteristics:
● Only authorized personnel can pass through. An audible and visual alarm will be sent when unauthorized personnel enter
● The normally open and normally closed modes can be flexibly selected, and two-way traffic can be allowed. The opening and closing speed of the door wing can also be set according to the flow of people to improve the working efficiency of the equipment
● Anti-tail tracking control technology to strictly prevent unauthorized personnel from passing
● Anti-trap function, when the door wing is blocked in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and at the same time, it will send an audible and visual alarm
● Anti-shock function: when the door opening signal is not received, the door wing automatically locks, and the maximum impact force is 120Nm
● Sound and light alarm function, including illegal intrusion alarm, anti-trap alarm and anti-tail alarm
● Remote control management function
● It can be operated online or offline
